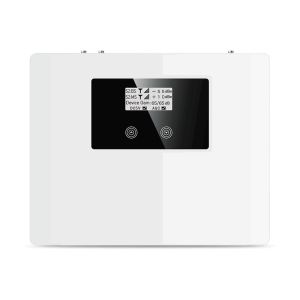

LTE Dual Band Repeater 4G

Name: LTE Dual Band Repeater 4G
Brand: ATNJ
Price: 130 USD

Quality LTE Dual Band Repeater 4G for sale

Brand Name : ATNJ

Model Number : ATNJ-FDD/TDD-LTE2.6-65-17

Certification : CE,ROHS，CCC，TUV,BV， ISO

Place of Origin : China

MOQ : 5Pcs

Price : USD+130---160+kit

Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability : 1000+unit+per day.

Delivery Time : 3-5 work days

Packaging Details : Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)

Material : Zinc Alloy, Plastic

Device Gain : 65-70dB

Device Output Power : 17-20dBm

Frequency Range : 1800+2600MHz

Gain Adjustment : Done

AGC function : Done

ALC function : Done

Power Supply : AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Device Weight : 0.5kg

Device Warranty : 48 months

Contact Now

LTE Dual Band Repeater 4G

FDD/TDD1800+2600MHz -LTE2.6-65-17 4G Dual band signal booster

Frequency Range

FDD1800M Uplink:1710~1735MHz Downlink:1805-1830MHz

TDD2600M Uplink:2575~2675MHz Downlink:2575-2675MHz

Mobile Signal Booster Echnical parameter

Uplink-signal booster	Downlink
Max Gain	65	65
Max Gain error	3±	3±
ALC Working Range	≥17	≥17
Passband Ripple	≥6	≥6
Receiver Sensitivity	≥90	...
Max Power	17±3	20±3
Spurious Emission	≤-36dBm/100KHz	≤-36dBm/100KHz
Intermodulation Attenuation	≤-45	≤-45
Signal Booster VSWR	≤25	≤25
System Delay	≤2μs

Further detail pls click here for downloading the products specification:

1800+2600MHz A034 5G Signal Repeater.pdf

Mobile Signal Booster Parameter index

Working Voltage-mobile signal booster	DC24V
Working Current	<5A
Signal Booster Power Supply	AC 100~240V 50/60Hz
Working Temperature	-25°c~+55°c
Working Relative Humidity	≤85°c
RF connector	SMA-K
FDDI connector	FC/APC
Dimensions	205X150X38
Signal Booster Weight	0.6kg

LTE Dual Band Repeater 4G

Mobile Signal Booster Installation Diagram

LTE Dual Band Repeater 4G
