700MHz 4G Signal Repeater with 70dB Gain and 20dBm Output Power LTE Signal Booster for Enhanced Mobile Coverage

Name: 700MHz 4G Signal Repeater with 70dB Gain and 20dBm Output Power LTE Signal Booster for Enhanced Mobile Coverage
Brand: ATNJ
Price: 58 USD

Quality 700MHz 4G Signal Repeater with 70dB Gain and 20dBm Output Power LTE Signal Booster for Enhanced Mobile Coverage for sale

VSWR : <=2

Weight : 1.85kg

ALC Intelligent function : Done

Frequency Range : Uplink:703-748MHz,Downlink:758-803MHz

Bandwidth : Supports 10MHz from 0.2 to 10MHz bandwidth adjusted

Gain : 70dB,UL Gp≥68 DL Gp≥70, Uplink Gp≥68dB Downlink Gp≥68dB,

Output power : 17-20dBm

System Delay : ≤ 5μs

RF Connect Type : SMA/Female

Inter-Modulation Attenuation ACPR : ≤ -40dBc / 30kHz (measured under rated output power)

Payment Terms : T/T,Western Union,Paypal,Bank transfering

MGC : Done

Power Supply : AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

In-band Ripple : ≤ 3dB

AGC Intelligent function : Done,31dB @ 1dB/ Step

Packing size : 54x19x16cm

Noise Figure : ≤ 5dB

Color : White,Blue,Cuztomized

Brand Name : ATNJ

Model Number : AS-BS-L7

Certification : CE,ROHS，CCC，TUV,BV， ISO

Place of Origin : China

MOQ : 5Pcs

Price : USD+58---75+kit

Supply Ability : 1000+unit+per day.

Delivery Time : 3-5 work days

Packaging Details : Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Contact Now

700MHz 4G Signal Repeater

Product Overview

Digital Band28 700MHz LTE 4G Mobile Signal Booster Selected Band Cellular Amplifier Signal Repeater for Mobile Operator

Technical Specifications

Digital Selected Band28 700MHz specially designed for mobile provider requirements.

Specifications	Parameters
Frequency Range (Customer Selectable)	Uplink: 703-748MHz Downlink: 758-803MHz
Frequency Bandwidth (Adjustable)	10MHz from 0.2 to 10MHz bandwidth adjusted
Gain	70dB
Automatic Gain Control (Step Attenuation)	31dB @ 1dB/Step
Auto Gain Control	20dB Min.
Output Power (Customer Selectable)	20dBm
Spurious Emission	≤ -15dBm/30kHz 9kHz~1GHz: ≤ -36dBm/30kHz 1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR	≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple	≤ 3dB
VSWR	≤ 2
I/O Impedance	50 Ω
Noise Figure	≤ 5dB
System Delay	≤ 5μs
RF Connector (Customer Selectable)	SMA (Female)
Operating Temperature	Operation: -10°C ~ +55°C Storage: -20°C ~ +60°C
Power Supply	AC 110~220V±20%, 50/60Hz (AC 220V/ DC5V/2A power adapter)
Dimensions	16513040 (mm)
Weight	≤ 0.8 kg (Net)
Alarm Monitoring System	Alarm for uplink self-oscillation
Indication LED	Power supply indicator

Download Product Specification PDF

Key Features

2022 upgraded micro power smart single band signal repeater for residential use
WiFi monitoring and control function
Covers 100-300sqm (standard kit), supports max 2-3 indoor antennas for over 800sqm coverage
Choice of Analog or Digital (Customized Selected Band) repeater
Intelligent installation guidance with LCD display
Real-time signal strength display

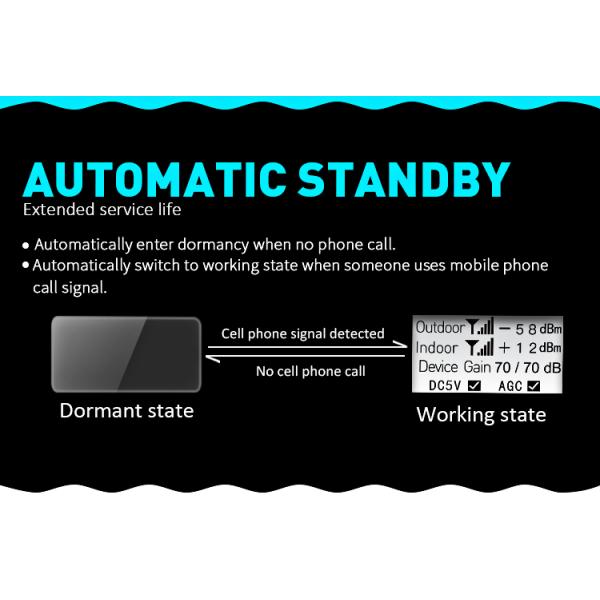

Automatic dormancy when no calls are active

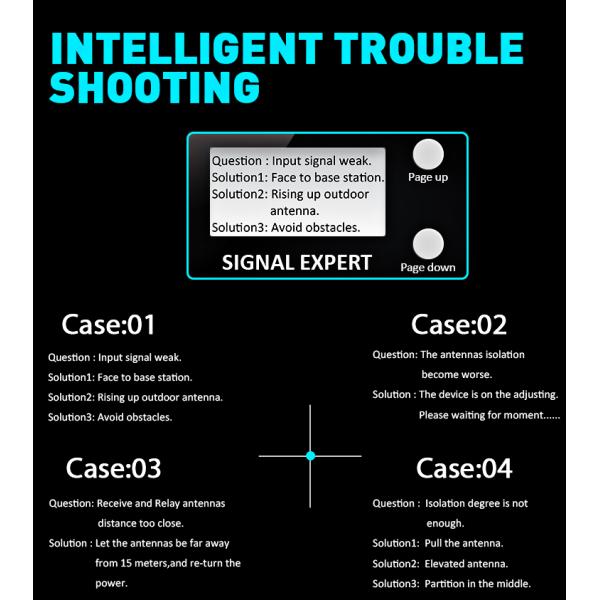

Automatic alarm for installation errors with solutions
Automatic system gain adjustment to prevent self-excitation
Proactive device damage alerts
Supports 10MHz from 0.2 to 10MHz bandwidth adjustment

Product Images

700MHz 4G Signal Repeater with 70dB Gain and 20dBm Output Power LTE Signal Booster for Enhanced Mobile Coverage

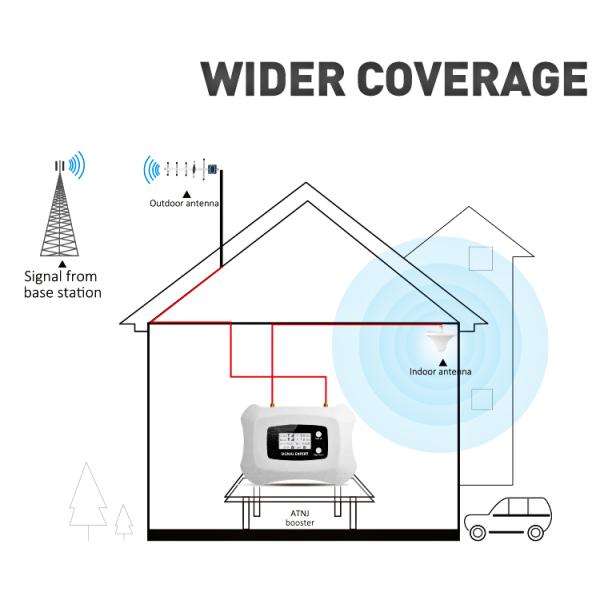

Easy Installation in 6 Steps

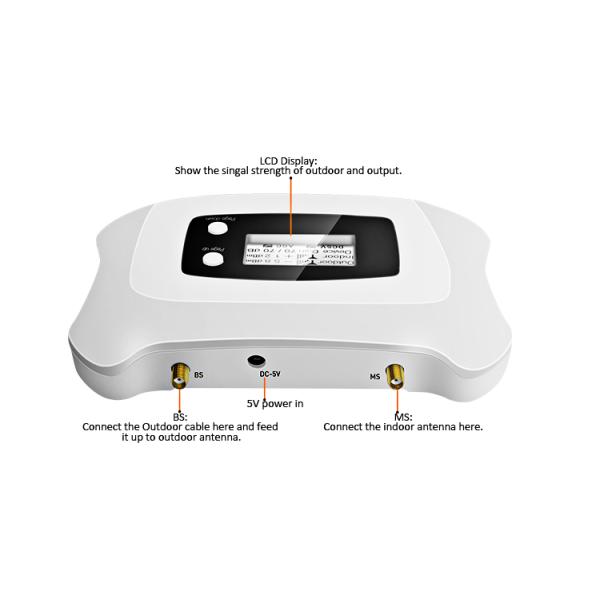

Install the outdoor antenna on the roof, facing the signal tower
Connect one end of 15 meters coaxial cable with outdoor antenna
Connect the other end of 15 meters coaxial cable to "BS" port
Connect 5m cable to indoor antenna and "MS" port
Find appropriate position to place the inside antenna
Power up - cell phone signal will be full bars immediately

We will provide the correct plug adapter suitable for your location based on shipping address.

Manufacturer Information

We are the manufacturer with our own factory, providing OEM/ODM services.

Frequently Asked Questions

Are you a trading company or manufacturer? Can I use my own logo and label?

We are a factory with trading services. We provide OEM/ODM services.

Can I place a sample order? What is your MOQ?

Yes, we welcome sample orders to test and check quality. MOQ is 1 for normal products.

Is it easy to set up your products?

Yes. We provide user manuals and 24/7 technical support.

What is your warranty period?

We offer 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not covered.

How can I get more information?

Please feel free to contact us with any other questions.
