Support Frequency Range : 1920-1980MHz/2110-2170MHz, Customized
Products type : 3G booster
Device Gain : 85dB
Device Output : 27dBm
Color For Choice : Black or Customized
ALC Intelligent function : Done
MGC Function : Done
RF Connect Type : N/Female
Device DWeight : 8.5kg
Brand Name : ATNJ
Model Number : AT-003-W
Certification : CE,ROHS,CCC,TUV,BV, ISO
Place of Origin : China
MOQ : 5Pcs
Price : USD+230-280+unit
Supply Ability : 1000+unit+per day.
Delivery Time : 3-5 work days
Packaging Details : Standard neutral packing,48x46x18cm(1 kit)
Payment Terms : T/T,Western Union,Paypal,Bank transfering
2 Watt Customized 3G Signal Booster Cellular Repeater Amplifier
2 Watt Customized Band1 2100MHz 3G 4G Signal Booster Cellular Repeater Amplifier
Selling Point

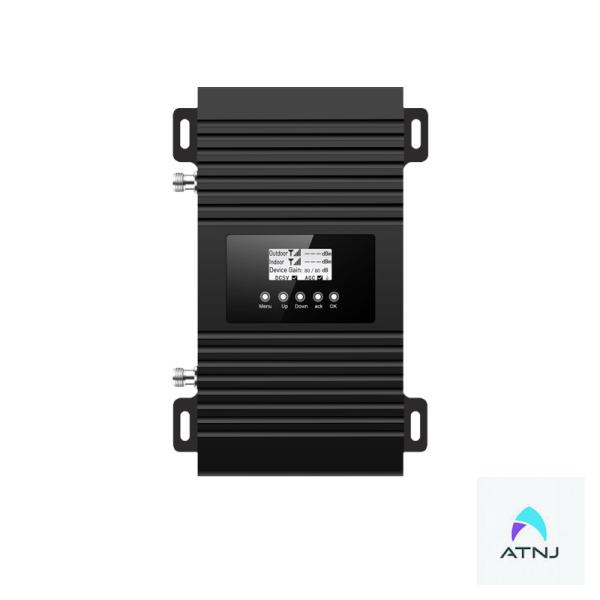

1. Smart LCD : Show the real-time signal strength.
2. Sleeping Mode : When no user calls, the device works in Sleeping mode, so as to achieve the purpose of energy saving.
3. ALC(Automatic Level Control) : Automatically adjust the output gain down to optimal figure while the output gain is above the optimal figure by the ALC circuit, this can greatly optimize the calling and data transfer quality.
4. AGC (Automatic Gain Control) : When the downlink output signal is too strong or self-oscillated, booster can automatically reduce the gain and reduce the interference signal.
5. MGC (Manual Gain Control) : In order to install the booster conveniently, all frequency band of the booster have the Gain attenuation adjustment function, the adjustment scope is 0-33dB.
Technical Specifications
| Single Band Repeater with AGC/MGC | ||||
| Model | AT-003-W | |||
| Frenquecy Range | UplinK: 1920-1980MHz Downlink: 2110-2170MHz | |||
| Working System | Band1 WCDMA 2100MHz | |||
| Gain | 85dB | |||
| Device Output Power | 2 watt | |||
| Bandwidth | Wide Range | |||
| Ripple in Band | ≤4dB | |||
| Noise Figure @ Max.Gain | ≤6dB | |||
| V.S.W.R | ≤2dB | |||
| MTBF | >50000Hours | |||
| Power Supply | AC110V~220V;DC+5V/2A | |||
| Power Comsumption | <20W | |||
| Impedance Matching | 50ohm | |||
| Mechanical Specification | ||||
| RF Connector | N/F | |||
| Cooling | Heatsink Convection Cooling | |||
| Dimension | 170*130*26(mm) | |||
| Net Weight | 0.35KG | |||
| Installation Type | Wall Installation or Desk | |||
| Environment Conditions | IP40 | |||
| Origin | Shenzhen | |||
| Operating Temperature | -10°C~55°C | |||
Further detail pls click here for downloading the products specification:
Please Check Frequency before Buying How to check?
- Android mobile phone
Download App called < Network Cell Info Lite >
The App will tell the number of LTE band
- Iphone
Dial *3001#12345#*
Clink Cell Serving Info
Check Freq Band Indicator, the number is LTE Band

Product Description



The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.



FAQ:
Q1 Could you send us antenna sample for qulification?
A: Yes, we will consider the antenna sample qulification as the first step of our long term coorperation, we will rebate the sample charge in further mass production order.
Q7: What is your payment terms?
A: We accept Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
|
|

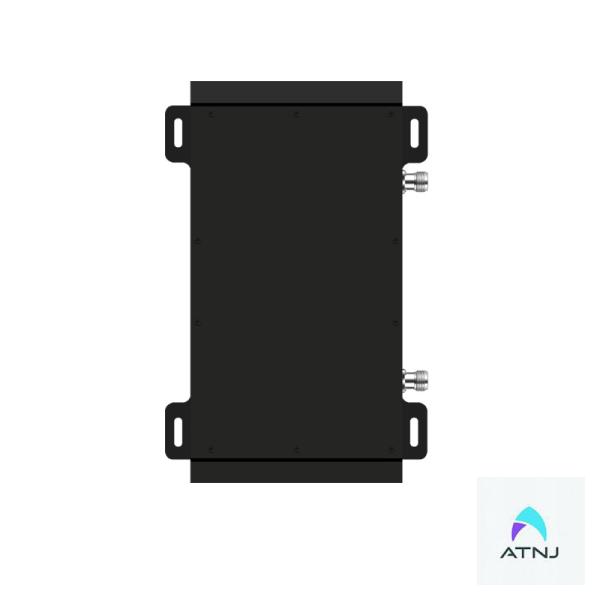

2 Watt Customized 3G Signal Booster Cellular Repeater Amplifier Images |
